Product description

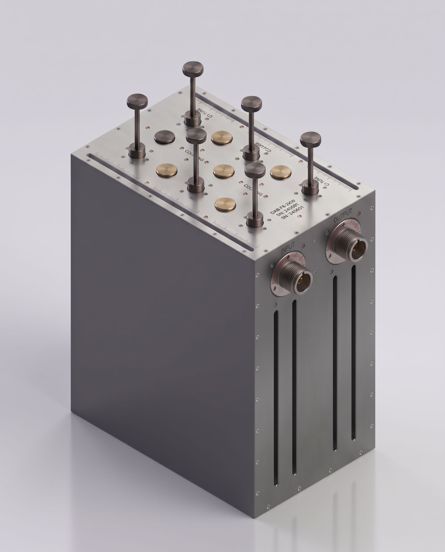

Presenting our new 6-Cell 300W DAB Band-Pass Filter, built for maximum selectivity and uncompromised performance.
Featuring a cross-coupling configuration, this filter provides sharp out-of-band rejection while keeping insertion loss to an absolute minimum.
Build Quality & Specs:
- 300W RF Power Handling (7/16 DIN Connectors)
- Invar tuning controls for maximum thermal stability
- Silver-plated brass internal lines for top conductivity
- Heavy-duty aluminum outer housing

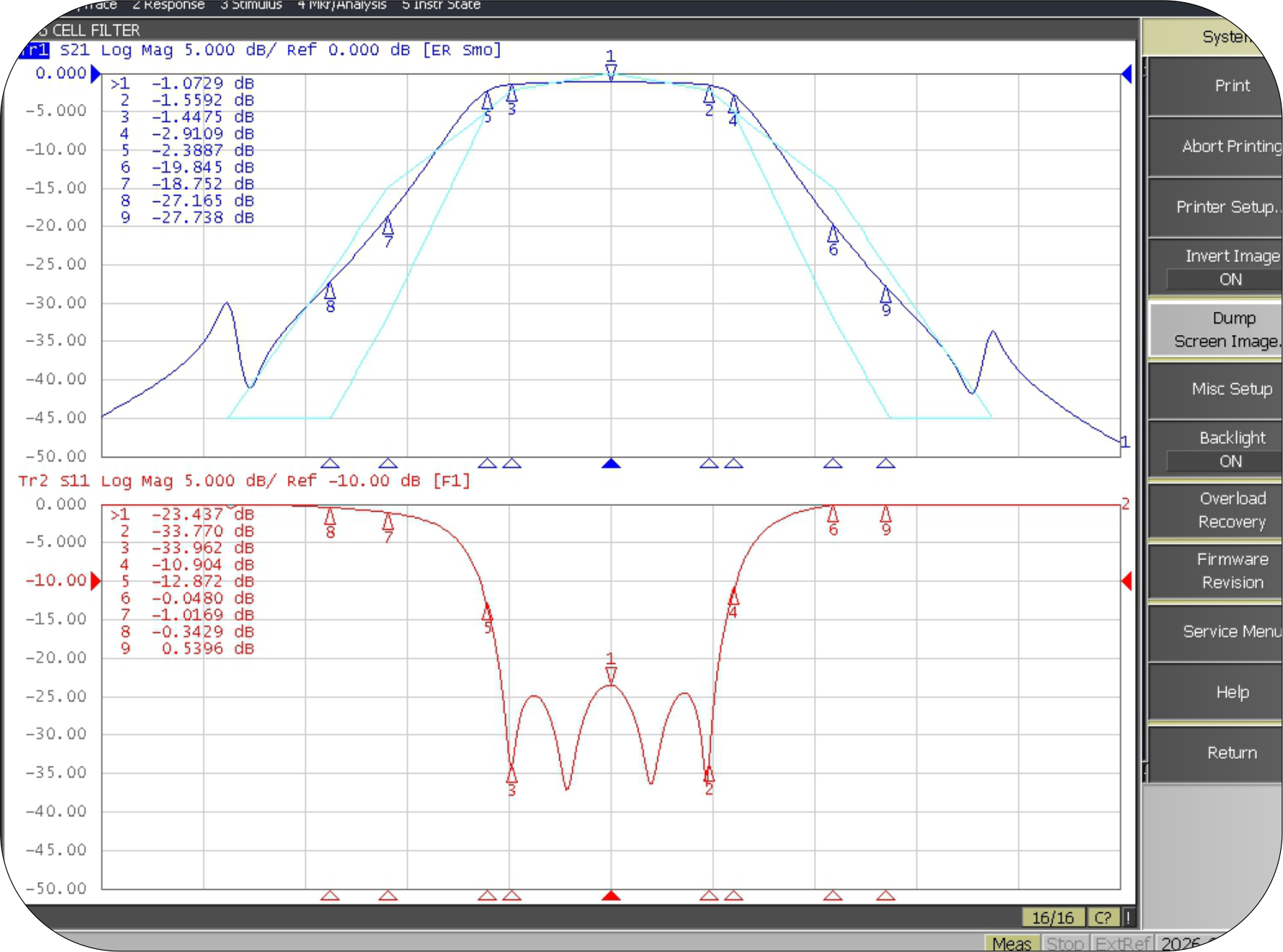

Gallery
| FDD/1061-M | |
|---|---|
| FREQ. RANGE (Mhz) | 174 – 240 |
| IMPEDANCE (Ohm) | 50 |
| V.S.W.R. | < 1.15:1 |
| ATTENUATION (dB) | – 0.9 to -1.4 |
| POWER (W) | 300 |
| BANDWIDTH (-2db) (Mhz) | 1.5 |
| CONNECTOR | 7/16 |
| WEIGHT (Kg) | 19 |
| DIMENSIONS (cm) | 343x196x490 |
